ADVANCED CLEANING SOLUTON

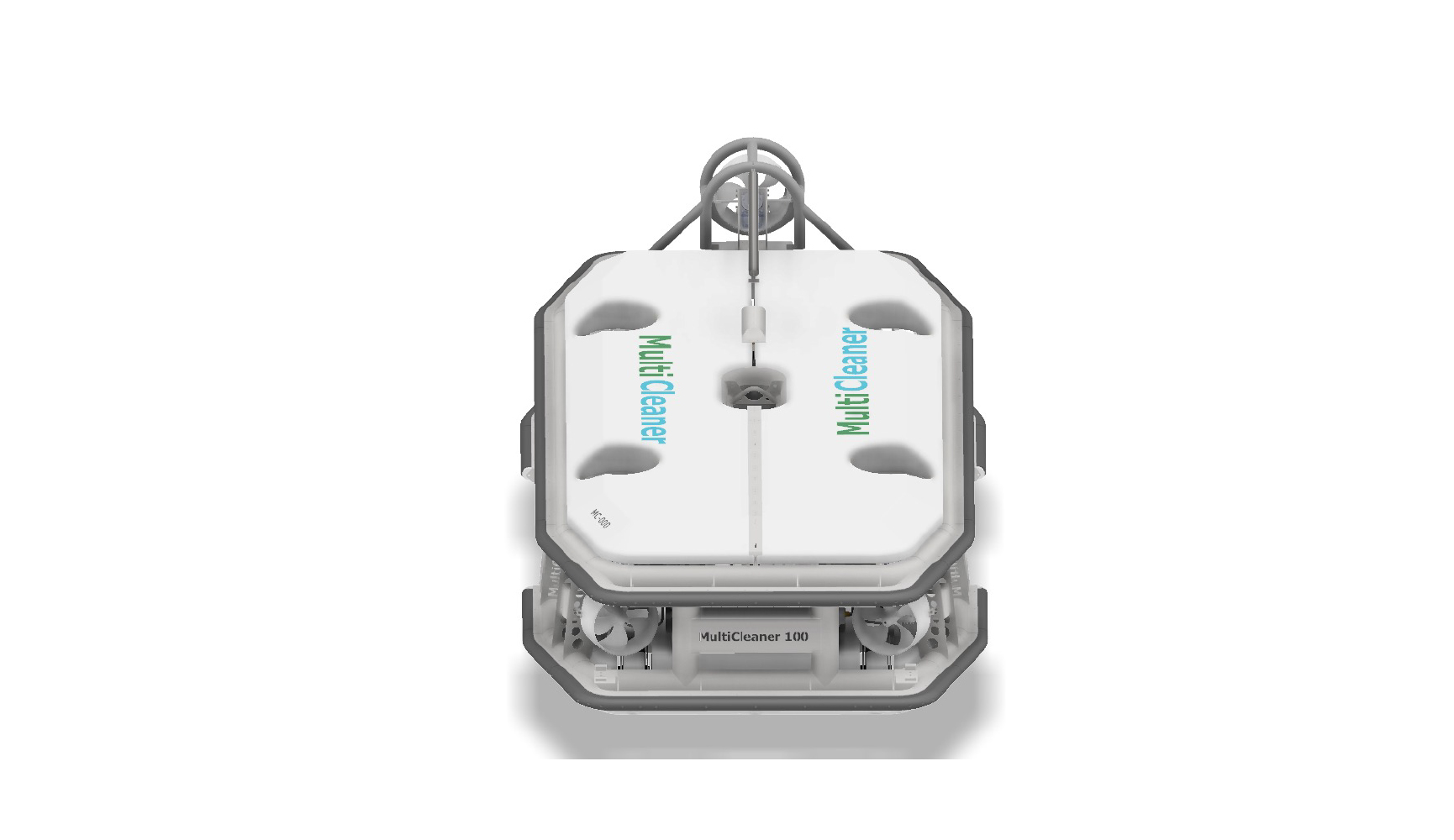

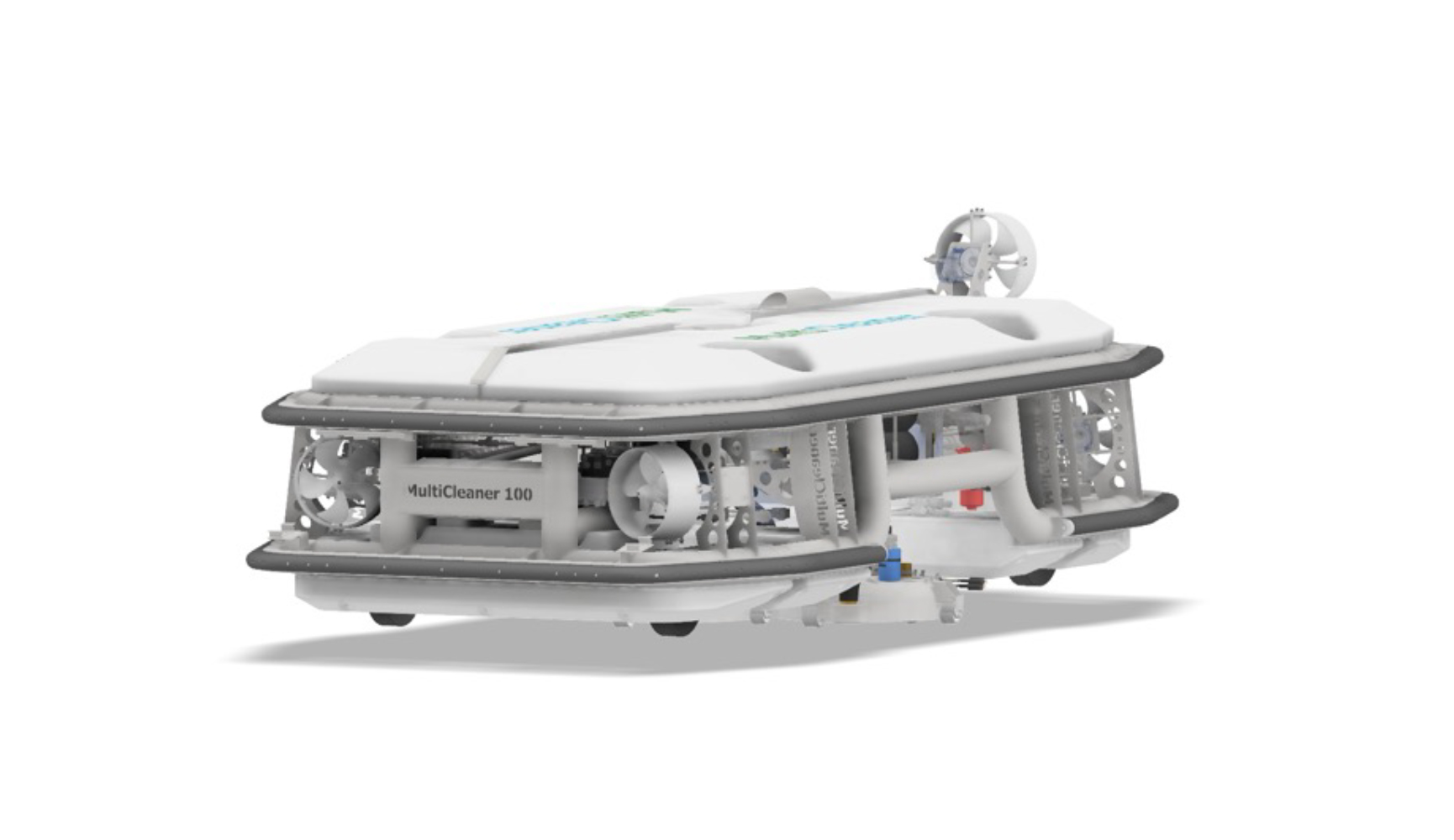

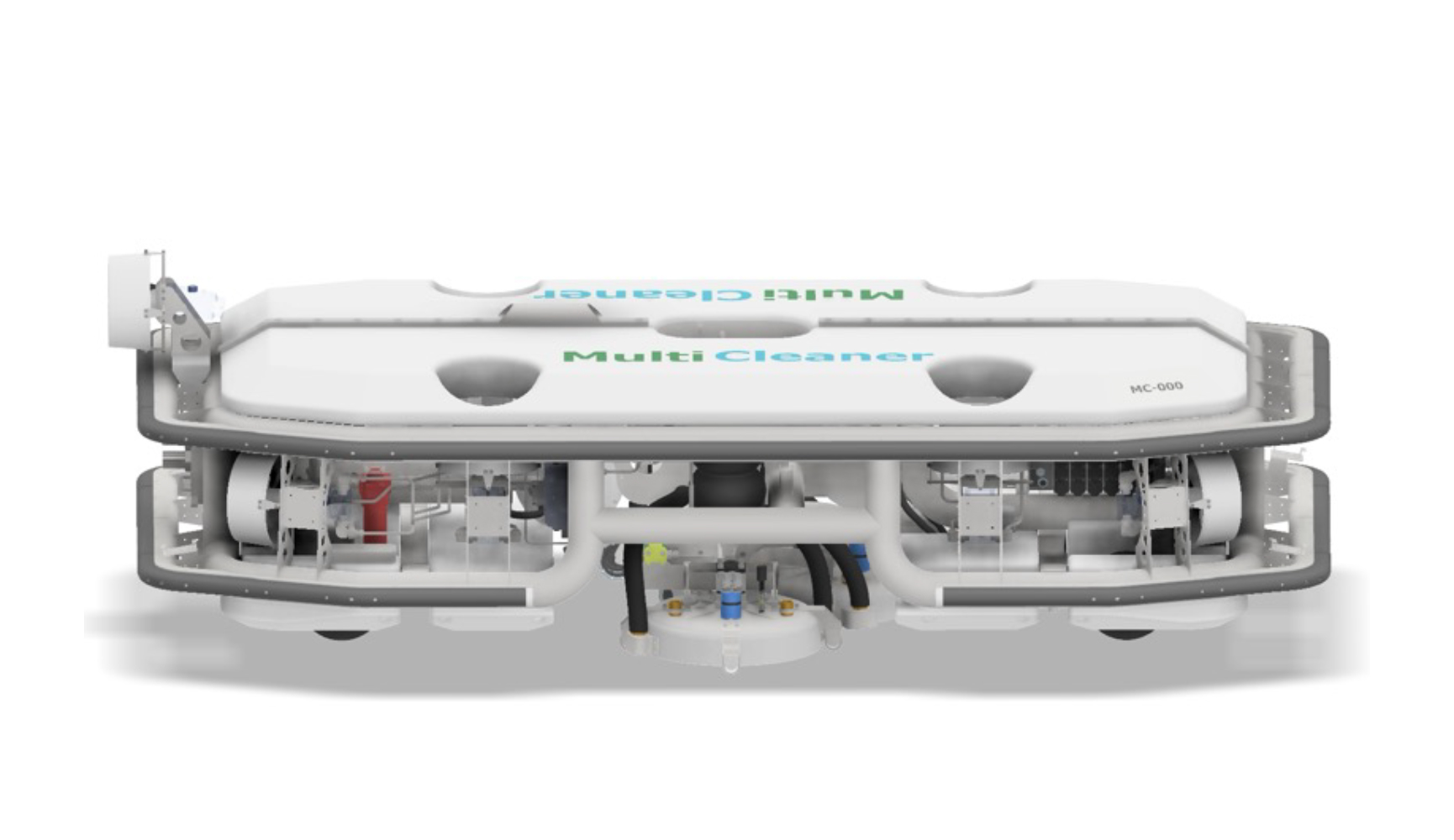

MultiCleaner ROV

With the MultiCleaner ROV we provide our clients with several options of performance. The multicleaner can be delivered in the base model setup as a Brush Cart, substituting traditonal brush cart operations. Super magnets and vertical thrust keeps the ROV in position, and with the additional optional booster thruster operations in current strong locations are possible.

Module based set up:

General facts
  • Module based set up
    Rig 0.5; Brush cleaning rig setup (no collection of fouling)
    Rig 1.0; HPWJCF (High Pressure Water Jet Collect and Filtrate) set up for environmental considerations (collection/filtration of fouling) – 2026
    Rig 2.0; HPWJCFO (High Pressure Water Jet Collect, Filtrate and Oxidise) setup currently in R&D process. 2028
  • The system can be built into a workboat or used from a trailer onshore
  • Can be fitted with different cleaning rig setups (Rig 0.5, 1.0 – 2.0)
  • Removes slime/algae without coating damage
  • Allows regular cleanings between dry
    docking potentially extending future
    dry docking periods
  • Fully loaded VLCC hulls can be cleaned in full – day and night
  • Around the clock cleaning thus a minimum of down time
  • Cleaning capacity 1,000-2,000 sqm/hour
  • Video report of hull cleaning operations can be provided within
    48 hours
  • Dimensions:
    330 cm (L) x 170 cm (W) x 85 cm (H)​
  • Frame: Stainless steel, tube structure​
  • Weight: 1,350 kg​
  • Max. depth: 60m​
  • Buoyancy: Solid cell structure ​
  • Power input: / 990 Vac, 3 phase, ​
    60 Hz, – 60 kW​
  • Booster thruster:
    Adds additional 50% thrust for high current locations​
  • Barnacle Plow:
    For plowing off barnacles and algae before the brushes or HPWJ takes the remaining​
  • Super Magnets:
    For keeping the ROV aligned with the hull in high swell locations​

ADVANCED CLEANING SOLUTON

A complete Lift on Lift off system for a MultiCleaner ROV

Please get in touch with us for more information and demo!

MULTICLEANER ROV

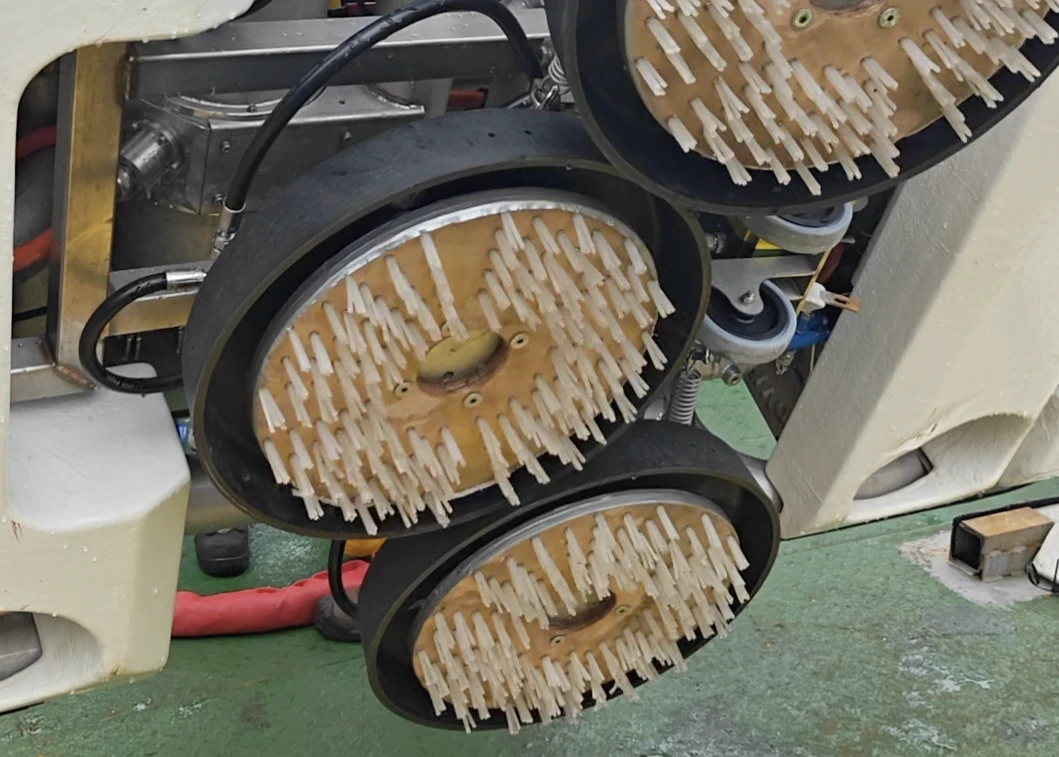

Rig 0.5 Brush Cleaning rig setup

  • The brushes are interchangeable to different kinds of hull growth.

MULTICLEANER ROV

Rig 1.0 HPWJHigh Pressure Water Jet setup

  • Filters are located within the MultiCleaner and will filter particles above 10 my
  • Adjustable nozzle pressure to ensure a pressure that fits every surface
